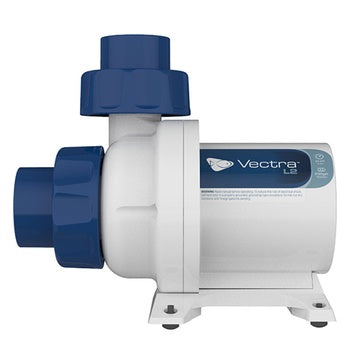

S2, M2 & L2 RETURN PUMP
EcoTech Marine has set new standards for equipment in saltwater aquariums. The Vectra is no exception. The world’s smartest return pump can be run on a schedule, wirelessly give you updates on the operation and be automatically configured to work with your specific aquarium setup.
An Ever Expanding Ecosystem - Mobius
You’ve invested in your ecosystem with the smartest and most capable EcoTech equipment. Now unlock the true potential of this system with nothing more than an app on your smart device.
Standard PVC Input and output Quick Couplers
Quiet Drive Technology
Driver Included with mounting bracket
|Flow||1,400 gph (5,300 lph)||2,000 gph (7,500 lph)||3,100 gph (11,500 lph)|
|Max Head Pressure||11.5 feet (3.5 m)||21.5 feet (6.5 m)||21.5 feet (6.5m)|
|Footprint||3.8 in. x 6.5 in. (98.4mm x 165.4mm)||4.5 in. x 7.5 in. (113.5mm x 192.6mm)||5 in. x 8.5 in. (126.8mm x 215.15mm)|
|Fiitings||Input: 1 in. (25 mm) Output: .75 in (19mm)||1.25 in. (31.75mm) Output: 1 in (25mm)||1.5 in. (38 mm) Output: 1.25 in (31.75mm)|
The Vectra can be set to auto calibrate to your tank. As a return pump, this smart feature prevents back siphoning if the pump is turned down and also provides a neutral flow condition in feed mode.
ESL via Mobile Device
All Vectra pumps are compatible with ReefLink. Reeflink provides completely wireless access to the world of EcoSmart Live, the web-based aquarium command center from EcoTech Marine.
Blizzard. Hurricane. A motorist hits a utility pole. Stuff happens. The power goes out… Vectra pumps are compatible with the EcoTech Battery Backup accessory.
Included with the Vectra Pump are QuickCouple components, these fitted couplers provide the flexibility to make installation, cleaning and adjustments a breeze. The Vectra also boasts the ability to rotate the volute of the pump to adapt to the needs of your plumbing setup.
British Standard Pipe Threading
RETURN PUMP MODES
Constant Speed mode is the default mode of the Vectra, this makes the pump produce flow at a constant speed that is determined by the position of the dial.
At the touch of a button the Vectra pump will temporarily pause the current mode and idle allowing food to be added to the tank without being cycled into the overflow and filtration.
Speed Lock gives you the ability to lock in a desired speed on the pump by disabling the control dial protecting you from accidental and not so accidental unwanted changes in speed.
CLOSED LOOP MODES
Lagoonal Random mode simulates a low-energy lagoon environment. The speed of the pump is changed slowly to recreate the gentle currents of a lagoon.
Reef Crest Random
Reef Crest Random mode simulates a high-energy reef environment. The pump will change speed frequently and drastically to simulate crashing waves and surging tide. This is a favorite of SPS coral.
Gyre mode creates a flow pattern consisting of uniform clockwise and counterclockwise flow levels pulsing at a selected interval between two seconds and two hours.
ECOSMART LIVE COMPATIBLE
EcoSmart Live is EcoTech Marine’s web-based aquarium command center. It allows you to control your Vectra pumps, VorTech pumps and RadionLED lighting from anywhere in the world through a computer or mobile device (iOS and Android supported). EcoSmart Live is loaded with features such as setup guides, flow and lighting wizards, specialty modes, and the ability to create new modes with just the click of a mouse or tap of a finger.
Get real time information about your lighting and pumps or wirelessly update your product’s firmware. Having issues getting the coral growth that you expect? Our award winning customer service staff can log into your account and suggest changes for you.
BATTERY BACKUP COMPATIBLE
In an aquarium with no flow, fish and corals can begin to die in as little as 4 to 10 hours. The Battery Backup is reef tank insurance in an aluminum housing.
By adding the Battery Backup**, your tank is insulated from power interruptions, helping protect your valuable investment -and your tank inhabitants.
*Hours are estimated and will vary depending on battery life, pump mode, and other factors.
** For best performance when in return pump configuration, a Vectra Battery Backup Booster is required.
THE VECTRA ADVANTAGE
Traditional AC pumps, when used as a return pump for your sump, are flow controlled through the use of a choke valve. This method of control is inherently inefficient for two reasons. 1) The AC pump purchased must often be overpowered for your given setup to allow for flexibility. 2) By adding artificial impedance to your flow, electricity is wasted. The Vectra pump will always operate at the optimum efficiency because there is no need to use a flow restricting valve to achieve your desired flow rate.
When used with the ReefLink, your Vectra pump can send you performance and status alerts right to your mobile device or computer. Your return pump is the heart of your aquarium; the faster you hear about an unexpected issue the more successful you will be as an aquarist.
